AWTF-80 SC
Overview
Manufacturer	Aisin Seiki
Production	2005 – 2019
Model years	2005 – 2019
Body and chassis
Class	6-Speed TransverseAutomatic Transmission
Related
Chronology
Successor	AWF8F35 Transmission

• Tf80sc Service Manual Pdf
• Tf-80sc Pdf
• Transmision Automatica Tf80sc Pdf
• Tf80sc Pdf Atsg

36 A C TF-80SC (AF40), TF-81SC (AF21) 6 Speed FWD (Electronic Control) (Peugeot, Citroen, Ford, Volvo, Mazda, Opel, Vauxhall, Saab, Cadillac, Fiat, Renault, Alfa & Land Rover) Revision 03/2012. 5.10 AISIN WARNER JP (Automatic Transmissions) Ltd Tel +44 (0) 1934 852772 info@jpat.co.uk www.jpat.co.uk AF40/TF-80SC, AF21/TF-81SC FWD 6 Speed 632 D C E B A 255 776 076 750 070 311 034 510 530 036 520 179 209 777 778 211.

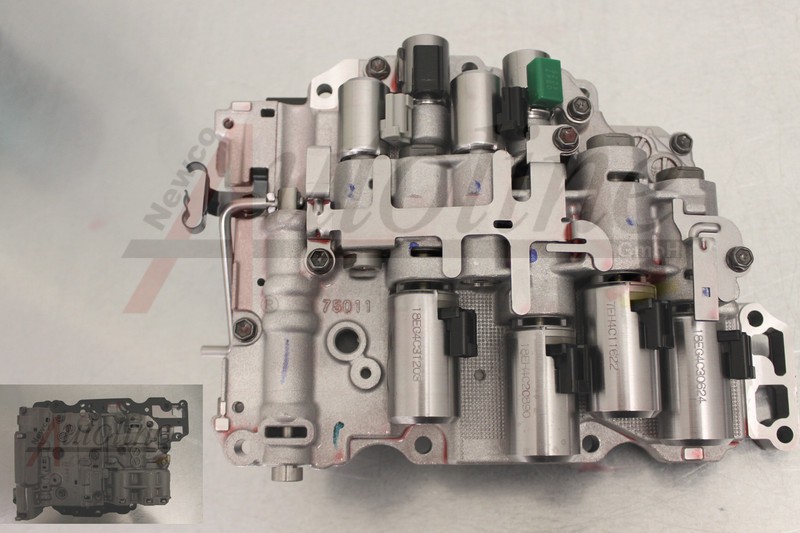

The Aisin AW TF-8# SC series is a 6-speed automatic transmission designed for use in transverse engine applications and produced by Aisin Seiki. It is designed to handle a maximum of 450 N⋅m (331.9 ft⋅lbf) of torque.^[1] It is built in Anjō, Japan.^[2] It is also called the TF-80SC^[3] (AWF21, AF40-6, AM6,^[4] AW6A-EL) and TF-81SC (AF21).^[5]

1. Installation & Assembly a. Install the Sonnax O-ring into the shallow groove on the Sonnax spring adjuster (Figure 2).b. Slide the OE spring over the small boss on the Sonnax spring adjuster.
2. The TF80SC transmission is a 6-speed automatic transmission designed by Aisin Seiki and used in many auto manufacturer's vehicles including BMW, Fiat, Ford, GM, Hyundai, and more. The TF80SC transmission, also known as the AF40 or AF40-6 was designed for use with transverse engines and meant to fit the space of a manual transmission.

The design team set out to create a 6 speed automatic that fits in the same space as a manual gearbox. It measures 358 mm (14.1 in) in length and weighs 90 kg (198 lb). Its combined use of a conventional 5-pinion planetary gearset and a compound Ravigneaux gearset makes it incredibly light and compact. This combination is known as a Lepelletier arrangement. The shifting of gears is managed by a sophisticated computer programme which oversees a clutch-to-clutch actuation. Gear changes are accomplished by one clutch engaging the instant the clutch from the previous gear disengages. The transmission control module (TCM) is located inside the transmission housing, instead of being located outside it. The advantage of this is to reduce external wiring as well as to provide a constant environment for TCM operation which encourages longevity. One aspect of the advanced nature of the electronics is at idle (along with required foot brake depression on e.g. Opel Astra), it automatically selects neutral gear to reduce internal temperatures and improve fuel economy.

Iwatobi High School Swimming Club's Diary 2 is another in the series of the above one, which features fun little stories similar to the episodes of the anime, just audio only, and this usually means they can get away with more that they can't necessarily put in the show.These drama CDs are usually pretty spendy, but there's a lot of content so it's up to you to decide if you want it. - Iwatobi Swim Club Episode 5 Online at Anime-Planet. The Iwatobi High School Swim Club is participating in a joint training camp with the Samezuka Academy and Soufuukan High School teams. Sousuke is also participating as an alumnus. In the midst of the excitement, Rei and Nagisa notice that something is odd about Romio's swimming. Soon enough, Makoto and Nagisa also rejoined the group, and along with a new classmate, Ryugazaki Rei, they established the Iwatobi High School Swimming Club. Watch on Crunchyroll Free! Aug 28, 2013 - Iwatobi High School Swimming Club's Diary 1 - Free! The Iwatobi High School Swim Club (岩鳶水泳部 Iwatobi Suiei-bu) is founded by swimmers Haruka Nanase, Makoto Tachibana, and Nagisa Hazuki with Gou Matsuoka as manager and Iwatobi High School classical literature teacher Miho Amakata as faculty advisor. Rei Ryugazaki later joins as the necessary fifth member to create a school club and four swimmers needed to participate in events.

It is a sealed for life unit, using proprietary transmission fluid which is labelled as being maintenance free. However, for vehicles used primarily for towing, taxi or in mountainous environments transmission fluid change every 60,000 km is recommended. Transmissions made before year 2011 (generation 1) use JWS 3309 standard oil, while transmissions made from year 2011 (generation 2) use JWS 3324 standard oil.

All wheel drive transfer cases can be fitted to the AWTF-80 SC.

Specifications[edit]

Technical Data[edit]

Gear Teeth and Ratios		Planetary Gearset: Teeth			Count	Total	Avg.
		Ravigneaux		Simple
Type	Sun 1.1 'Ring 1.1	'Sun 1.2 Ring 1.2	Sun 2 Ring 2	Brakes Clutches	Ratio Span	Gear Step
Gear	1	2	3	4	5	6	R
AWTF-80 SC	36 44	44 96	45 81 Izotope Ozone 3 serial key gen: Izotope Ozone Professional Audio Mastering 3.13 serial keygen: Izotope Ozone Au Mac Vst Rtas 4.0.1 patch: Izotope Ozone Vst Au Rtas Htdm 4.03 keygen: Izotope Ozone 3.15 keygen: Izotope Ozone 3.10 serial: Izotope Ozone 4.02.268 patch: Izotope Ozone Vst Dx Rtas Htdm 4.03 crack: Izotope Ozone crack: Izotope Ozone 3. Nectar 3 (Mac) Nectar 3 Production Suite iZotope Includes: Vocal Assistant 3.0.0 32-bit and 64-bit AU, RTAS, VST2, VST3 OS X 10.9.5 (Mavericks) – macOS 10.14 (Mojave) Instructions: Install and activate it with PKG Installer. Installation Instructions iZotope Ozone 5 Keygen: 1. Extract The Downloaded rar Files. Open Keygen.exe 3. Click “Generate” 4. Copy generated key 5. Enjoy using your new copy of iZotope Ozone 5 iZotope Ozone 5 Keygen + Instruction PC&MAC Download. Izotope keygen mac.	2 3	6.0494	1.4333
Ratio	4.1481	2.3704	1.5556	1.1546	0.8593	0.6857	- 3.3939
ZF	31 38	38 85	37 71	2 3	6.0354	1.4327
Ratio	4.1708	2.3397	1.5211	1.1428	0.8672	0.6911	- 3.4025

Maximum Shift speeds[edit]

7000 rpm (up to 350 Nm)
6500 rpm (350 Nm to 400 Nm)

Torque Converter Diameter[edit]

260 mm (10.2 in)

Applications[edit]

BMW/MINI[edit]

• 2014–present BMW i8
• 2015-present BMW 225xe Active Tourer (F45)
• 2020-present BMW X1 xDrive 25e (F48)
• 2020-present BMW X2 xDrive 25e (F39)
• 2014-2017 MINI Cooper (F56/55)
• 2015-2017 MINI Clubman (F54) with 3 cylinder engines (B37 and B38)
• 2016-2017 MINI Countryman (F60) with 3 cylinder engines (B37 and B38 FWD)

Fiat Chrysler Automobiles[edit]

Alfa Romeo

• 2005–2011 Alfa Romeo 159^{[6][nb 1]}
• 2005–2010 Alfa Romeo Brera^{[6][nb 2]}
• 2006–2010 Alfa Romeo Spider^{[6][nb 3]}

Fiat

• 2005–2011 Fiat Croma^{[nb 4]}

Lancia

• 2008–2014 Lancia Delta^{[nb 5]}

Ford Motor Company[edit]

Ford

• 2005–2007 Ford Five Hundred
• 2006–2012 Ford Fusion (US)^{[7][nb 6]}
• 2007–2014 Ford Mondeo MkIV 2.3 160 PS Petrol and 2.0 TDCi Diesel^[8]
• 2006–2014 Ford Galaxy 2.3 118kw / 160PS Petrol (as standard gearbox)

Lincoln

• 2006 Lincoln Zephyr
• 2007–2012 Lincoln MKZ

Mercury

• 2005–2010 Mercury Milan^[7]
• 2005–2007 Mercury Montego^[7]

General Motors[edit]

Cadillac

• 2005–2010 Cadillac BLS^{[nb 7]}
• 2009–2016 Cadillac SRX II^{[nb 8]}

Chevrolet

• 2008–2016 Chevrolet Cruze^{[2][nb 9]}

Opel / Vauxhall

• 2008–2017 Opel/Vauxhall Insignia
• 2014–2017 Opel/Vauxhall Meriva

Saab

• 2006–2014 Saab 9-3 II^{[nb 10]} (FWD & AWD)
• 2013–2014 Saab 9-3 III
• 2010–2012 Saab 9-5 II

Hyundai[edit]

• 2006–2014 Hyundai Veracruz^[6]

Jaguar[edit]

• 2007–2009 Jaguar X-type^{[nb 11]}

Land Rover[edit]

• 2006–2014 Land Rover Freelander 2
• 2011–2013 Land Rover Range Rover Evoque

Luxgen[edit]

• 2013–2015 Luxgen S5^{[nb 12]} 2.0T
• 2015-2019 Luxgen S5 ecohyper 1.8T & 2.0T
• 2019-Present Luxgen S5 GT(GT225) 1.8T
• 2014–2015 Luxgen U6^{[9][nb 13]} 2.0T
• 2015-2018 Luxgen U6 ecohyper 1.8T & 2.0T
• 2018-Present Luxgen U6 GT(GT220) 1.8T
• 2016-Present Luxgen M7 ecohyper 2.2T
• 2016-Present Luxgen U7 ecohyper 2.2T
• 2019-Present Luxgen URX 1.8T

Tf80sc Service Manual Pdf

Mahindra[edit]

• 2015–present Mahindra XUV500

Mazda[edit]

• 2005–2008 Mazda 6 I
• 2006–2012 Mazda CX-7
• 2006–present Mazda CX-9
• 2006–present Mazda MPV III
• 2007–2012 Mazda 6 II

PSA Peugeot Citroën[edit]

Citroën

Tf-80sc Pdf

• 2010–2016 Citroën Jumpy

Peugeot

• 2006–2008 Peugeot 307
• 2007– Peugeot 308
• 2005–2010 Peugeot 407
• 2010–present Peugeot 408
• 2011–2018 Peugeot 508
• 2005–2010 Peugeot 607
• 2008– Peugeot 3008
• 2009– Peugeot 5008
• 2010–2016 Peugeot Expert

Renault[edit]

• 2005-2009 Renault Vel Satis
• 2006-2010 Renault Espace

Suzuki[edit]

• 2014–present Suzuki Vitara (FWD & AWD)
• 2015–present Suzuki Baleno
• 2017–present Suzuki Swift
• 2017–present Suzuki SX4 S-Cross

Transmision Automatica Tf80sc Pdf

Volvo[edit]

• 2005–2014 Volvo XC90^{[7][10][11][12]} (FWD & AWD)^{[nb 14]}
• 2006–2009 Volvo S60^[10] (FWD & AWD)^{[nb 15]}
• 2006–2008 Volvo V70 II (FWD & AWD)^{[nb 16]}
• 2006–2008 Volvo XC70 (AWD)
• 2007–2016 Volvo S80 II^[11][14] (FWD & AWD)^{[nb 17]}
• 2008–2016 Volvo V70 III^[15] (FWD & AWD)^{[nb 18]}
• 2008–2016 Volvo XC70 II^[11] (FWD & AWD)^{[nb 19]}
• 2009–2017 Volvo XC60^[11] (FWD & AWD)^{[nb 20]}
• 2011^[11]–2018 Volvo S60 II (FWD & AWD)^{[nb 21]}
• 2011–2018 Volvo V60 (FWD & AWD)^{[nb 22]}
• 2011–2012 Volvo S40 II (FWD)^{[nb 23]}
• 2011–2012 Volvo V50^[16] (FWD)^{[nb 24]}
• 2011–2013 Volvo C30 (FWD)^{[nb 25]}
• 2011–2013 Volvo C70 II (FWD)
• 2012–2014 Volvo V40 II (FWD)^{[nb 26]}

Notes[edit]

1. ^1.9 JTDm; 2.4 JTDm; 3.2 JTS
2. ^2.4 JTDm; 3.2 JTS
3. ^2.4 JTDm; 3.2 JTS
4. ^1.9 JTDm; 2.4 JTDm
5. ^1.8 DI Turbo
6. ^3.5L V6
7. ^1.9 D; 1.9 D (TST)
8. ^2.8L
9. ^US market; 2.0L Turbo Diesel
10. ^1.9 TiD, 1.9 TTiD & Aero 2.8L
11. ^2.2d
12. ^2.0T
13. ^2.0T
14. ^D5 & D5 AWD, 3.2, T6 AWD and V8 AWD^[13]
15. ^2.4D, D5 & D5 AWD, 2,5T and R AWD^[7] ('06-'08)
16. ^2.4D, D5 & D5 AWD, 2,5T and R AWD ('06-'07)
17. ^D5 & D5 AWD, 2.5T, 2.5FT, 3.2, T6 AWD and V8 AWD
18. ^D4 AWD, D5 & D5 AWD, 2.5T, 2.5FT, 3.2 and T6 AWD^[15]
19. ^D4 AWD, D5 & D5 AWD, 2.5T, 2.5FT, 3.2 and T6 AWD^[15]
20. ^D4 AWD, D5 & D5 AWD and T6 AWD
21. ^D5 & D5 AWD and T6 AWD
22. ^D3, D5 & D5 AWD and T6 AWD
23. ^D3 and D4
24. ^D3 and D4
25. ^D3 and D4
26. ^D3 and D4

27. 1.6THP 2.0HDİ

References[edit]

Tf80sc Pdf Atsg

1. ^Kasuya, Satoru; Taniguchi, Takao; Tsukamoto, Kazumasa; Hayabuchi, Masahiro; Nishida, Masaaki; Suzuki, Akitomo; Niki, Hiroshi (2005). 'AISIN AW New High Torque Capacity Six-Speed Automatic Transmission for FWD vehicles'. SAE Transactions. 114: 1193–1201. ISSN0096-736X.
2. ^ ^abhttp://www.gmpowertrain.com/product_guide/REV_FP_2014_Information_Guide_102213.pdf
3. ^https://www.volvotechinfo.com/index.cfm?event=viewFile&filename=ReleaseNewsVIDA2014C.pdf&hash=EEA99E460619945AD28D8979F7BDF452
4. ^http://citroen-de-de.custhelp.com/euf/assets/images/allemagne/citroen/Wartungshefte/2006/cs9006-2_de.pdf
5. ^'Archived copy'(PDF). Archived from the original(PDF) on 2016-03-04. Retrieved 2015-01-02.CS1 maint: archived copy as title (link)
6. ^ ^abcd'Replacement Aisin Warner TCC Linear Solenoid with Black Connector'. Rostra Powertrain Controls. Archived from the original on 2018-05-22. Retrieved 2019-01-16.
7. ^ ^abcde'Archived copy'(PDF). Archived from the original(PDF) on 2016-03-04. Retrieved 2015-09-16.CS1 maint: archived copy as title (link)
8. ^http://www.fordwiki.co.uk/index.php?title=Fluid_Capacities_%26_Specifications
9. ^'LUXGEN U6 VIETNAM'. luxgen-motor.vn (in Vietnamese). Archived from the original on 2017-08-11. Retrieved 2018-02-25.
10. ^ ^ab'Volvo Car USA, LLC. Bookstore:RTJ21096-2009-06-10'. www.volvotechinfo.com. Archived from the original on 2016-03-04. Retrieved 2017-11-26.
11. ^ ^abcde'Archived Copy'. Archived from the original on 2016-06-17. Retrieved 2017-11-26.CS1 maint: archived copy as title (link) CS1 maint: unfit url (link)
12. ^'Kraftstoffbetriebene Heizung, D5244T, TF-80SC' [Fuel powered heater, D5244T, TF-80SC] (Accessory intallation instructions) (in English and German). Volvo Car Customer Service. Archived from the original on 2018-02-25. Retrieved 2018-02-25.
13. ^'437: Transmission control module (TCM), TF-80SC AWD'(PDF). Volvo Car Corporation. 23 December 2013. Archived(PDF) from the original on 2018-02-25. Retrieved 2018-02-25.
14. ^Volvo Car Corporation (2008). 'Archived copy'. Archived from the original on 2016-03-04. Retrieved 2015-09-13.CS1 maint: archived copy as title (link)
15. ^ ^abc'Volvo Car USA, LLC. Bookstore:RTJ20857-2009-04-15'. www.volvotechinfo.com. Volvo Cars of North America. 15 April 2009. Archived from the original on 2018-02-25. Retrieved 2018-02-25.
16. ^'Volvo V50 Betriebsanleitung (MY12)' [Volvo V50 owner's manual (MY12)] (PDF) (in German). Volvo Car Corporation. 2011. p. 312. Retrieved 2019-01-16.
